Insect GateConsole
Every unit. Every room. One view.

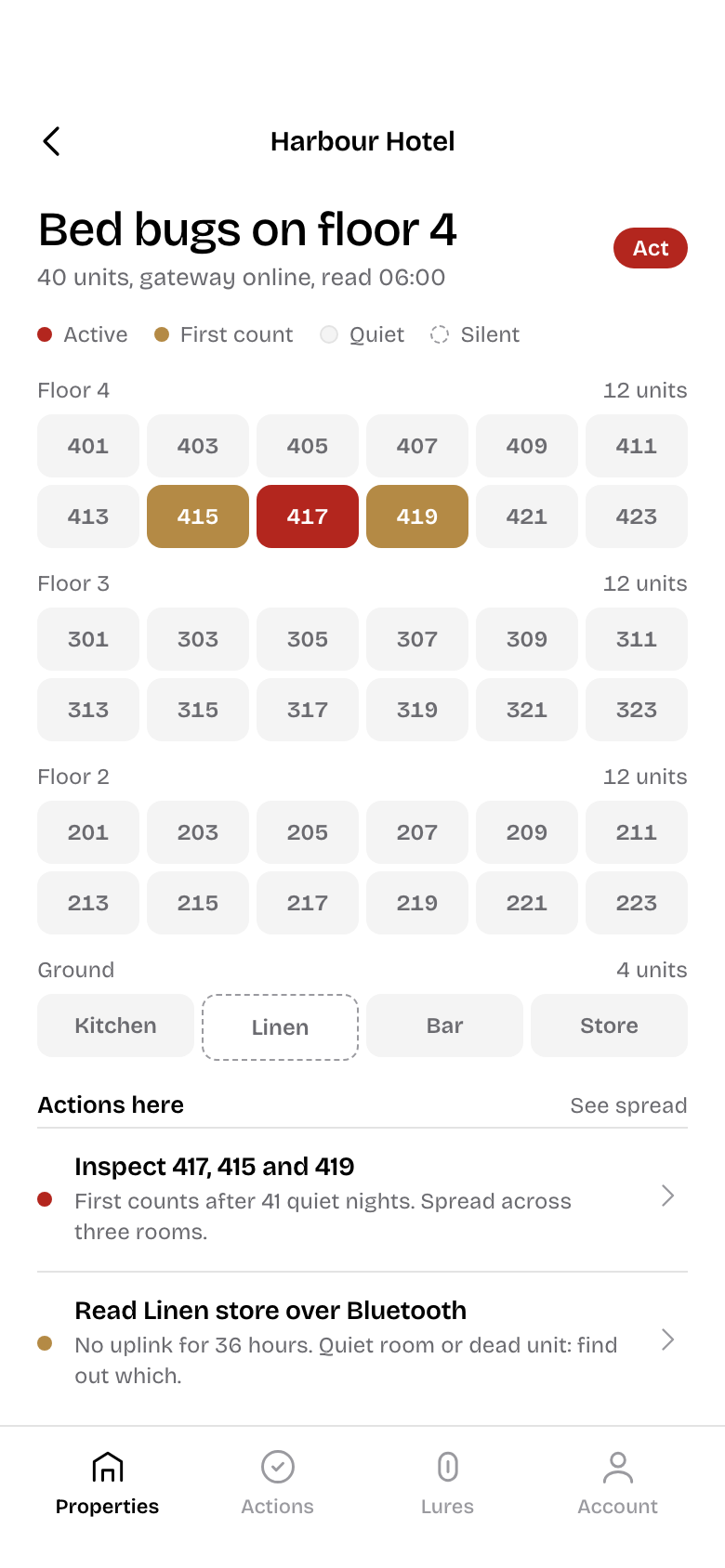

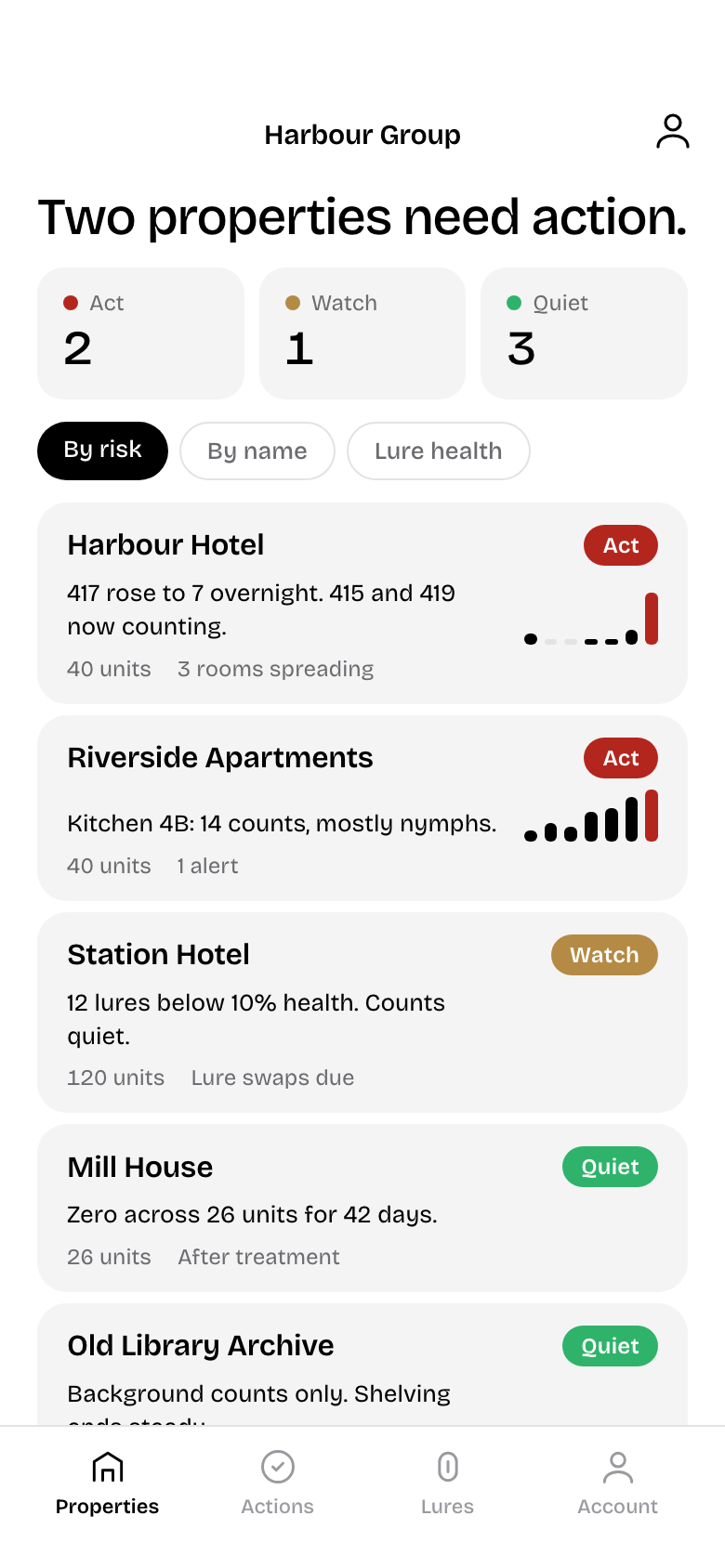

A site, then a floor, then a unit. Each shows its species colour, the count since it was last cleared, and the lure health as a percentage.
Example console list: six units named for their rooms, each with a count and a lure health percentage.
A room at zero needs no visit. A room that rose overnight does. Because every reading is remote, nobody has to lift a unit or examine a glue board to know which is which.
Technicians use the phone app over Bluetooth to name a unit after the room it sits in, join it to the site network, and read it directly when the gateway cannot reach it. Managers use the browser view for the week's exceptions.
Alerts are limited to what changes a decision: first activity after a quiet period, a count above a threshold you set, lure health low, battery low, unit silent.
The app, for people who run properties.

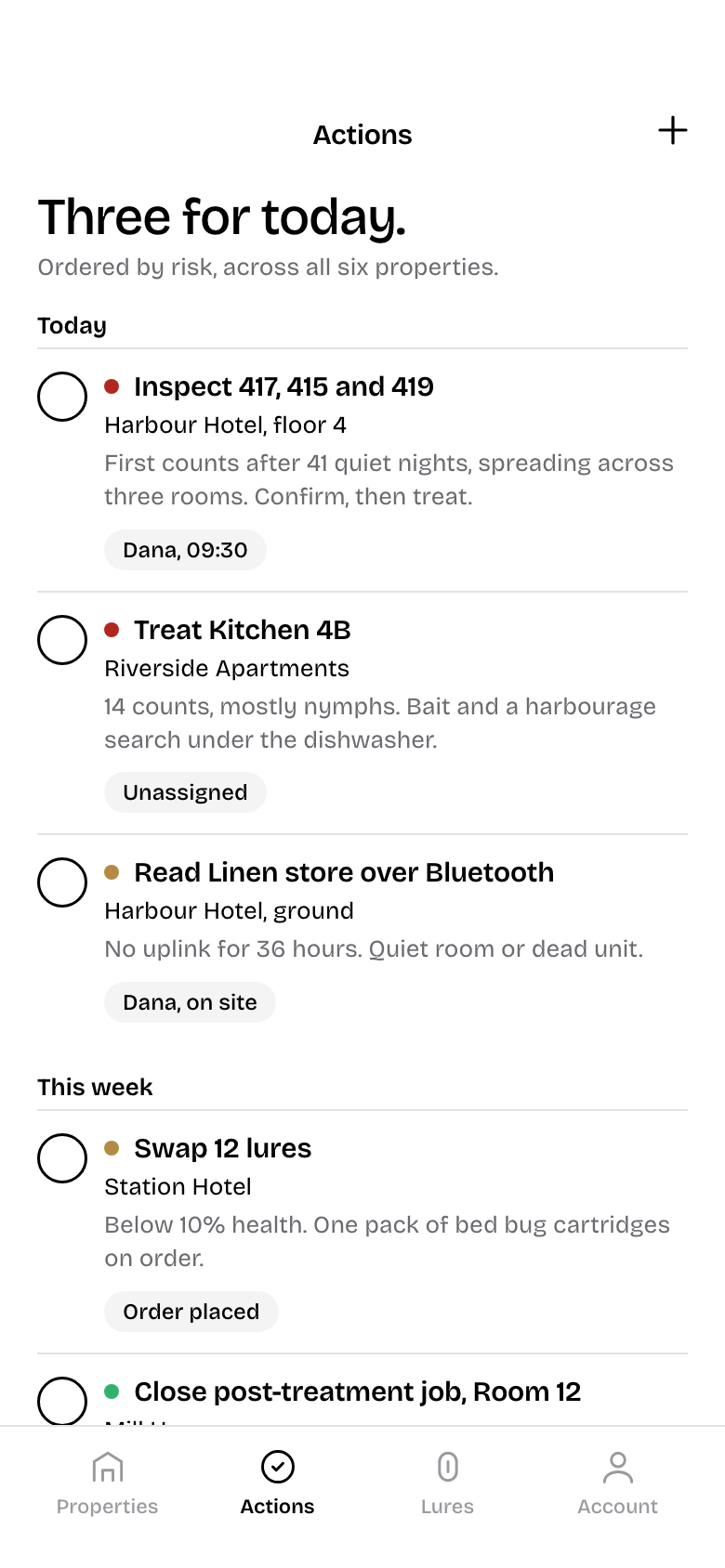

Everything is ranked by risk and phrased as an action. A rising count is shown as a rise, a spread as a spread.
| Phone | iOS and Android. Bluetooth commissioning and readout. |
|---|---|
| Browser | Site list, exceptions, lure calendar, CSV export |
| Roles | Technician, manager, read-only client |
| Export | Counts with timestamps, for the records you already keep |
